- Sku: 81202
- Vendor: TechExpress SA

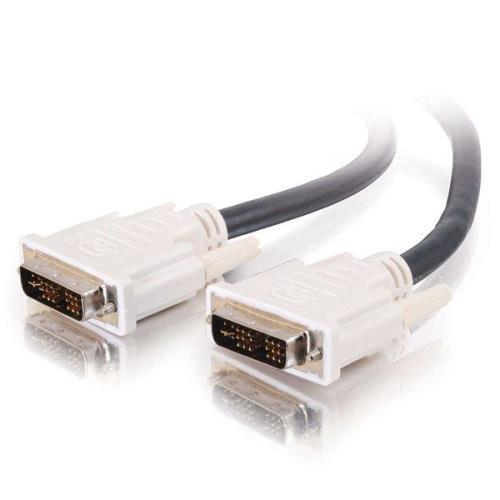

5m DVI-I M/M Single Link Digital/Analogue Video Cable
Please note that product images on our website are for illustrative purposes only. Actual products may vary in appearance and specifications. While we strive to ensure the accuracy of our images, we cannot guarantee that they will always perfectly reflect the actual product.
Product Features
•Shielded undermould protects against unwanted EMI/RFI interference
•PC99 colour-coded: white
Product Description
This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-I single link configuration provides enough bandwidth for resolutions up to 1600 x 1200 pixels and allows high speed transmission up to 4.95 Gbps. Three analogue 30 AWG coaxial lines enable high speed analogue transmission.
Tri-shielded undermould with dual Mylar® foil and braid shield protects against unwanted EMI/RFI interference. Each coax line is individually wrapped in foam-polyolefin insulation and overwrapped with a braided tinned copper shield. 28 AWG copper conductors are individually insulated in hard-density polypropylene to minimize crosstalk, and ensure high speed, error-free transmission. Gold-plated contacts provide full conductivity with no data loss. PC and Mac® compatible cable supports hot-plugging of DVI display devices. PC-99 colour-coded: white.
Connector 1: (1) DVI-I Single Link Male
Connector 2: (1) DVI-I Single Link Male
