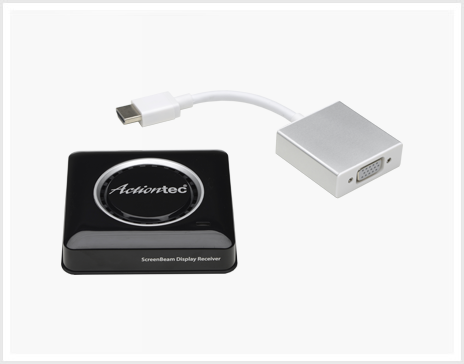

ScreenBeam Education Edition 2



THE WIRELESS DISPLAY SOLUTION BUILT FOR EDUCATORS

ScreenBeam Education Edition is the centerpiece of Today’s modern classroom. Fully enabling teachers to wirelessly connect their tablets and PCs to the classroom projector or display gives them the freedom to setup their classrooms however they see fit. With ScreenBeam Education Edition 2, it’s easy to supplement traditional lectures with rich, engaging multimedia, learning apps, educational programming, and even specialized online materials, if you see it on the small screen, you can see it on the big screen.

With ScreenBeam Education Edition:

• Teach from anywhere in the classroom


• Untether from the desk or whiteboard


• Full interactivity with students and content


• Engaged students 1:1 while others follow along


• No limits on content, apps, videos, websites, and more


• Save Money – no cables to run behind walls, extend projector bulb life, save power

Specifically Designed for Education

ScreenBeam Education Edition 2 offers best in class performance and reliability and is optimized for Education customers. Collaborating with IT experts across the global education landscape, ScreenBeam Education Edition 2 and the associated optional Central Management System uniquely address the needs and demands of school building environments, access control, configurability, management, and easy help-desk support.

Device Management for IT

With the free ScreenBeam local management console included in the receiver, setup is simple. For example, you can rename a receiver, manage display ports, or change the PIN pairing password and much more. For medium to large deployments of ScreenBeam receivers, add the ScreenBeam Central Management System (CMS). The CMS includes a software and network adapter that enable IT to easily deploy, manage, remotely configure, customize, apply policies, and push device firmware updates and all ScreenBeam receivers within the network.

Compatible with Your Gear

ScreenBeam works with a wide range of devices you may already be using in the classroom. The solution supports Microsoft Windows 7, 8, 8.1, and 10.  Android/Wi-Fi Miracast devices, and Intel WiDi laptops, tablets, and smartphones. ScreenBeam is Microsoft’s premier wireless display receiver for its Windows 8.1 & Windows 10 devices, so you can be sure you’ll get the best possible wireless display experienceScreenBeam works with a wide range of devices you may already be using in the classroom. The solution supports Microsoft Windows 7 and 8, Android/Wi-Fi Miracast devices, and Intel WiDi laptops, tablets, and smartphones. ScreenBeam is Microsoft’s premier wireless display receiver for its Windows 8.1 devices, so you can be sure you’ll get the best possible second screen experience.

Specifications:



Video:	– H.264 compression – Supports up to full 1080p30 resolution
Audio:	– LPCM & AAC – Supports 5.1 surround sound
A/V Interface:	– HDMI Type-A female connector – VGA via adapter (included)
Wireless:	– 802.11 a/b/g/n Dual-band 2.4 & 5GHz – WPA2, WPS virtual PBC, AES 128-bit
Content Protection:	HDCP 2.x for HDMI
HDMI-to-VGA (YZ-050) Adapter:	– Supports VGA output, 10-bit resolution up to 165MHz pixel rate of up to (1080p and UXGA) – Supports LPCM and compressed surround sound – Supports VGA output: 480I/P, 576I/P, 720P, 1080I/P, 640×480, 800×600, 1024×768, 1280×720, 1280×768, 1280×800, 1280×960, 1360×768, 1366×768, and 1920×1080 – Does not support protected content playback
Regulatory Compliance:	FCC, CE,
Warranty:	Localized to country of sale

Minimum System Requirements

• Windows 8.1 or higher (with Miracast support)


• Intel WiDi capable laptop or tablet with Intel WiDi 4 or higher


• Wi-Fi Miracast capable smartphone, tablet, or laptop


• Compatible Windows laptop or PC with ScreenBeam USB Transmitter**


• Does not work with Apple products
