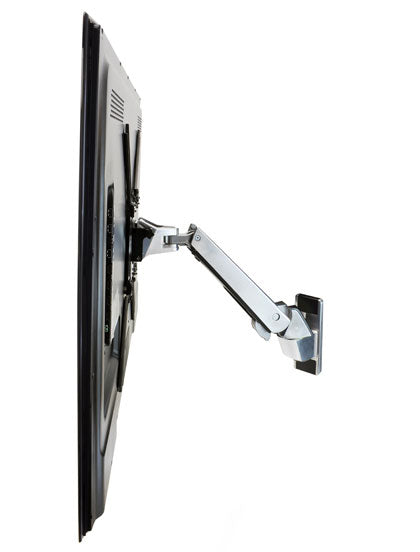

Interactive Arm, HD

Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.

Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.

Benefits
Patented Constant Force™ technology enables light-touch adjustments
Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
Gravity pivot enables tilting capabilities without the need of knobs or levers
Improves ergonomic viewing for TVs/displays mounted high on the wall
Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
Tilt and pan for maximum viewing flexibility
Level the screen at any position with +/- 5º of post-installation rotation
Cable management clips on the underside of the arm route and hide wires
Passes Ergotron’s 7,500-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Tech Specs

Screen ≥ 30" Capacity 18–40 lbs 8.2–18.2 kg Lift 20" 51 cm Tilt 25°† Pan 180° Rotation 10°‡ VESA MIS-E/F*

Part Number: 45-296-026
Description: Interactive Arm, HD, Heavy Duty (polished aluminum)
Includes arm, wall mount bracket, VESA adapter brackets, complete hardware kit
† Tilts forward 15°, tilts back 10°
‡ Rotation of +/-5° provides leveling adjustment of screen in any position
* Mounting Standards: VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm)
Note: Due to the variety of wall constructions, consider using professional installers to attach this product. Professional installation is strongly recommended when attaching this product above fireplaces
To fix the tilt position of the display in place, use the lock-down knob on the gravity pivot
Shipping Dimensions: 26" x 12" x 7.5" (660 x 305 x 191 mm)
Shipping Weight: 23 lbs (10.5 kg)
Warranty: Five (5) years
