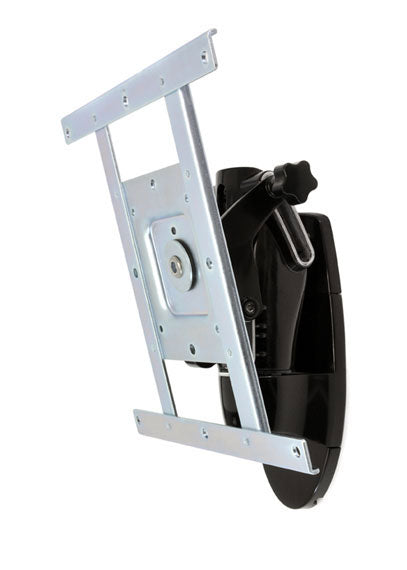

The perfect TV wall mount: This pivot offers a flexible alternative to rigid wall mounts for displays weighing up to 50 lbs (23 kg). Embedded CF™ technology enables effortless screen adjustment for optimal viewing comfort.



Benefits
Most affordable solution for medium displays
Rock-solid construction secures your display investment
Effortless adjustment for premium viewing
Easy three-step installation
Pleasing aesthetics make it perfect for the home or office
Integrated tilt lock-down feature

Tech Specs

Screen ≤ 42"† Capacity ≤ 50 lbs 22.7 kg Lift — Tilt 20° Pan 40° Rotation 360° P/L VESA MIS-D/E/F*

Part Number: 45-269-009
Description: LX HD Wall Mount Pivot (black)
Mounting Options: Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall
Includes knob on pivot to lock position of tilt
Display depth greater than 4" (10 cm) may diminish capacity
UL Compliant: Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
† Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
* Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Shipping Dimensions: 9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm)
Shipping Weight: 4.55 lbs (2.1 kg)
Warranty: Five (5) years
