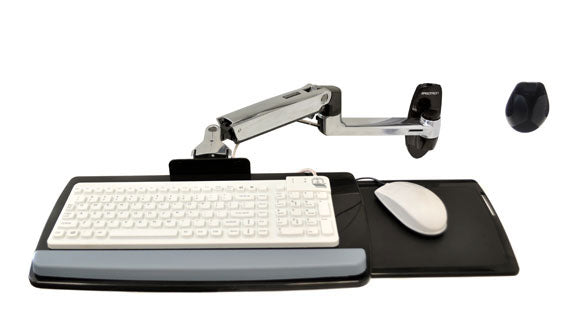

LX Wall Mount Keyboard Arm

Durable polished aluminum construction! The LX Keyboard Arm mounts keyboards to any wall while providing vertical and side-to-side motion. Effortlessly position a keyboard to the most comfortable typing position.



Benefits
Position your keyboard for maximum comfort and productivity
Arm extends keyboard tray up to 35" (89 cm); 13" (33 cm) height adjustment
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Creates a complete workstation when paired with the LX LCD Arm
Easy to use—simple installation and effortless operation
Mouse tray slides out to left or right, depending on user preference
Ideal for space-constrained spaces—folds to within 3.5" (9 cm) of wall in storage position
Integrated cable management
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Patented Constant Force™ lift-and-pivot motion technology

Tech Specs

Screen — Capacity ≤ 5 lbs 2.2 kg Lift 13" 33 cm Tilt 80° Pan 360° Rotation — VESA —

Part Number: 45-246-026
Description: LX Wall Mount Keyboard Arm (polished aluminum)
Includes LX arm, extension, keyboard tray, mouse tray, wall mount base, mouse holder, wrist rest
Arm can be used with or without the extension
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
Polished aluminum construction offers greater durability and enhanced aesthetics
Snap-fit cap secures interface of arms to extensions for greater stability
Mounting Options: Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket 97-091 (order separately)
Fasteners for direct attachment to wood/metal studs or concrete surface are not included—customer supplied
Base includes theft deterrent anchor holes for cable locks
Product Weight: 9.0 lbs (4.1 kg)
Shipping Dimensions: 20.75" x 11.25" x 7.5" (53 x 29 x 19 cm)
Shipping Weight: 9.7 lbs (4.4 kg)
Warranty: Ten (10) years
