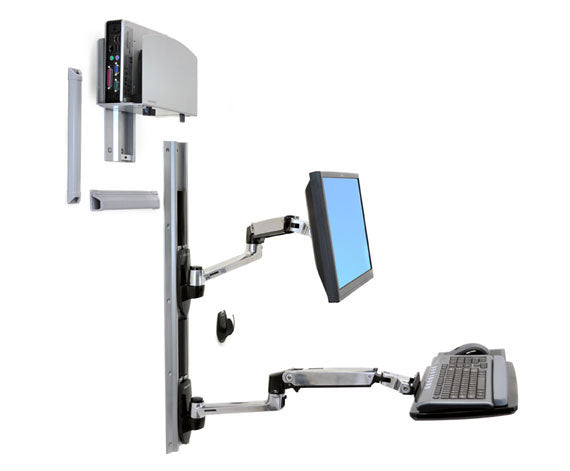

LX Wall Mount System

With Medium Silver CPU Holder. Durable polished aluminum construction! This is a complete solution that accommodates an LCD, keyboard and CPU while providing vertical and side-to-side motion. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

Benefits
Articulating arms feature full tilt/pan capability and 13" (33 cm) height adjustment, providing premium ergonomic adjustment
Extends LCD up to 25" (64 cm); keyboard tray extends up to 35" (89 cm); push your display and keyboard out of the way when not in use
Ideal for space-constrained rooms—keyboard folds to within 3.5" (9 cm) of wall in storage position. LCD arm folds back to a depth of 5.3" (13 cm)
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Creates a complete and compact workstation
Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient
Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Patented Constant Force™ lift-and-pivot motion technology

Tech Specs

Screen ≤ 32" Capacity 5–25 lbs* 2.3–11.3 kg Lift 13"* 33 cm Tilt 75° Pan 360° Rotation 360° VESA MIS-D

Part Number: 45-247-026
Description: LX Wall Mount System (polished aluminum)
Includes Includes: 10" and 34" Wall Tracks with (2) black track covers, LX Wall Mount LCD Arm, LX Keyboard Arm, wrist rest, mouse holder, Medium CPU Holder, CPU spacer, CPU and Arm track mount bracket kits, two (2) 10" Cable Channels, mounting kits for hollow-wall and wall-stud installation
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Improved LX Arm Features & Benefits
Polished aluminum construction offers greater durability and enhanced aesthetics
Snap-fit cap secures interface of arms to extensions for greater stability
* Weight Capacity: display = 5–25 lbs (2.3–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Size Range: 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
CPU Holder includes theft deterrent anchor holes for cable locks and fasteners for locking the holder’s width
NOTE: An alternate system configuration is available with a smaller, black-color CPU holder
Base includes theft deterrent anchor holes for cable locks
Product Weight: 30.7 lbs (14 kg)
Shipping Dimensions: 37" x 22 " x 7.5" (94 x 56 x 19 cm)
Shipping Weight: 40 lbs (18 kg)
Warranty: Ten (10) years
