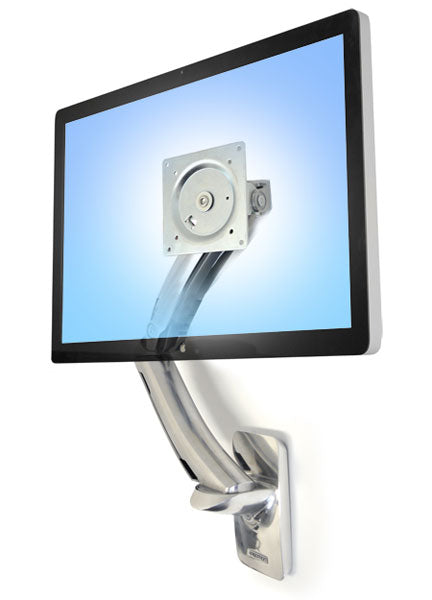

MX Wall Mount LCD Arm

The sleek MX LCD Arm accommodates mid-sized displays and all-in-one computers weighing up to 30 lbs (13.6 kgs).

Five inches (13 cm) of height adjustment, 17 inches (42 cm) of extension/retraction motion, integrated tilt and portrait-to-landscape rotation promote user comfort and enhance productivity.

Benefits
Stylish design and super sturdy construction; steel and polished aluminum exterior
Position your display for maximum ergonomic comfort to relieve eye, neck and back strain
Pre-assembled arm offers monitor/TV theft deterrence
Easy to use, simple installation and effortless operation
Cable management system conceals and routes cables under the arm, out of the way
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Rotate screen for portrait viewing of photos and pages—eliminate scrolling
Extends/retracts up to 16.7" (42 cm); push your display out of the way when not in use
Patented CF™ motion technology provides premium ease-of-use display adjustment

Tech Specs

Screen ≤ 42" Capacity 14–30 lbs* 6.3–13.6 kg Lift 5" 13 cm Tilt 80°† Pan 360° Rotation 90° P/L VESA MIS-D/E/F‡

Part Number: 45-228-026
Description: MX Wall Mount LCD Arm (polished aluminum)
Includes MX arm, vertical mount base, VESA adaptor brackets
* Weight Capacity: 14 to 30 lbs (6.3 to 13.6 kg). Monitor depth greater than 4" (102 mm) may diminish capacity. Contact Ergotron for more information
† Monitor tilts 75° up and 5° down
Pan at base = 180°; pan at extension = 360°; pan at monitor = 180°
Portrait/landscape rotation includes position lock
‡ Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm, 400 x 300 mm or 400 x 400 mm hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
** Recommended installation height: Upper mounting hole of base should be placed no higher than 60" (152 cm) above floor
Internal cable management
Product Weight: 8.1 lbs (3.7 kg)
Shipping Dimensions: 29.25" x 10.5" x 6.5" (745 x 265 x 160 mm)
Shipping Weight: 10.25 lbs (4.65 kg)
Warranty: Ten (10) years
