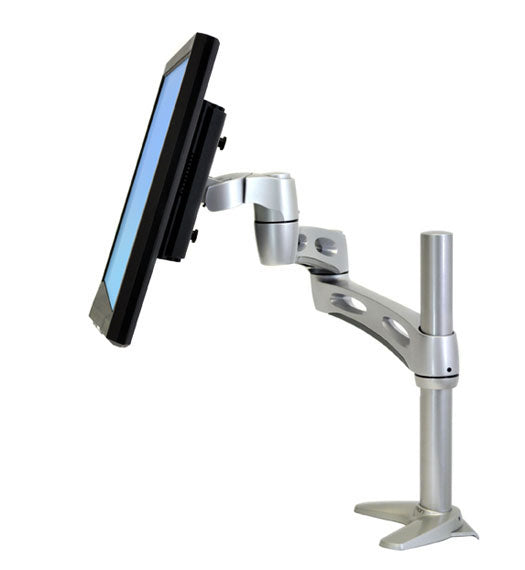

Neo-Flex® Extend LCD Arm

Get the combination of value and versatility in this LCD desk mount solution. Extend and retract your LCD, tilt it up and down, and rotate the screen from landscape to portrait.

Install the arm at any point on the vertical pole—9.5" (24 cm) variable height adjustment—placing the screen at the right height for you.

Benefits
Features 3-point telescoping motion. Easily position your LCD for the ideal viewing angle and viewing distance
Compact design frees up desktop space
Extends LCD out up to 22" (56 cm); push your display out of the way when not in use
Easy installation and flexibility—install either two or one of the extension arms or just the LCD pivot
Cable management feature routes cables under the arm, out of the way
Provides premium long-life LCD adjustment while maintaining touch-screen stability
Allows LCD to be rotated for portrait/landscape viewing

Tech Specs

Part Number: 45-235-194
Description: Neo-Flex Extend LCD Arm (silver)
Includes two (2) extensions, LCD energy pivot, desk clamp base, grommet mount base
Weight Capacity: 7 to 20 lbs (3.2 to 9.1 kg)
* Monitor depth greater than 2" (5 cm) may diminish capacity. Read more
Mounting Options: Desk clamp attaches to surface edge 1/2" to 1-7/8" (13 to 48 mm) thick; grommet mount attaches through surface holes 5/16" to 2" (8 to 51 mm) wide and up to 2-1/2" (63 mm) thick
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
9.5" (24 cm) variable height adjustment allows arm installation at different heights on pole
Configuration Flexibility: Install one or two arm extensions or only the LCD pivot as needed
Lock-out feature can be used to prevent portrait-to-landscape rotation
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel
Product Weight: 8.3 lbs (3.8 kg)
Shipping Dimensions: 19.5" x 11.5" x 6.5" (496 x 288 x 164 mm)
Shipping Weight: 9.7 lbs (4.4 kg)
Warranty: Three (3) years
