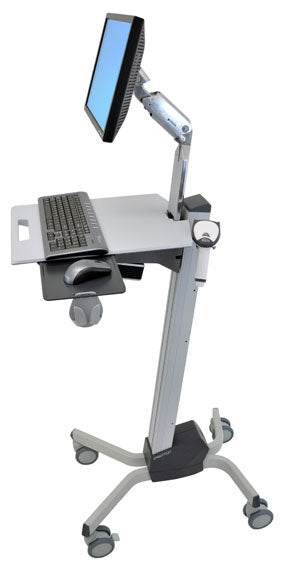

Neo-Flex® LCD Cart

This low-cost, height-adjustable computer cart supports your mobile computing needs today and tomorrow. It features a fully adjustable LCD Arm, 27 inches (68 cm) of height adjustment (work sitting or standing), VESA-compliant thin-client CPU holder, large worksurface, small footprint and a rugged, open-architecture design.

Use it anywhere computing needs to be mobilized: in a hospital as a point-of-care work space; in manufacturing as a mobile EWI platform; in the IT department as a diagnostic “crash cart.”

Benefits
LCD pans side-to-side for closer access; arm also reaches low for people wearing bifocals or using a tablet PC
Attach a thin-client CPU that uses a VESA-compliant mounting hole pattern to the underside of the worksurface
Front handle on worksurface, premium casters, and light-weight design enables cart to easily maneuver into tight spaces—cart weighs under 38 lbs (17 kg)
Flexible, open architecture design is ready for the computer equipment of today and tomorrow
Constant Force™ patented lift technology provides fluid, one-touch adjustment
Work sitting or standing with the ergonomic 27-inch (68 cm) height adjustment range
Barcode scanner holder provides easy access to hand-held scanner
Very accessible—facilitates ADA (Americans with Disabilities Act) compliant computing initiatives, such as mobile kiosks

Tech Specs

Screen ≤ 22" Capacity ≤ 26 lbs* 11.8 kg Lift 27"† 68 cm Tilt 65°‡ Pan 180° Rotation 360° P/L VESA MIS-D

Part Number: 24-206-214
Description: Neo-Flex® LCD Cart (two-tone grey)
Includes LCD arm, integrated worksurface/keyboard tray with left/right mouse tray, scanner holder bracket, mouse holder, cable storage area, four dual casters (two locking), quick-release VESA-CPU Mount, bracket for power strip, cable wrap
* Weight Capacity: Total maximum load on height-adjustment assembly = 26 lbs (11.8 kg). This is the sum of the following components: LCD arm = 6–12 lbs (2.7–5.4 kg); worksurface, keyboard tray and cable storage area = ≤ 6 lbs (3.6 kg); quick-release VESA-CPU mount = 2–8 lbs (.9–3.6 kg)
† LCD and worksurface adjust 20" (51 cm) in tandem; LCD arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)
‡ Monitor up/down tilt = +60°/-5°
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated powder coated painted steel
Maximum CPU size (W x H x D) = 10" x 10" x 3" (25 x 25 x 7.6 cm). Requires CPU with VESA-compliant mounting interface (75 x 75 mm or 100 x 100 mm hole pattern)
For larger CPUs use the Universal CPU Holder accessory (ordered separately), which is compatible with CPU sizes from 12" H x 3" D to 16" H x 8.5" D (300 x 80 mm to 406 x 220 mm) and attaches at the base of the cart. Maximum CPU weight which can be added to this cart using the Universal CPU Holder is 35 lbs (15.9 kg)
Power brick can mount under worksurface in cable storage area
Includes cable–wrap bracket that also holds power strip
Cables along main column are secured with “zip-ties” at provided attachment points
Patented Constant Force (CF) lift-and-pivot motion technology
Worksurface: 16.5" W x 20.5" D (42 x 52 cm)
Wheel-to-Wheel Base: 17.5" x 22.8" (44 x 582 cm)
Shipping Dimensions: 21.75" x 15" x 45.25" (552 x 380 x 1150 mm)
Shipping Weight: 56 lbs (25.4 kg); actual cart weight = 38 lbs (17 kg)
Warranty: Three (3) years
