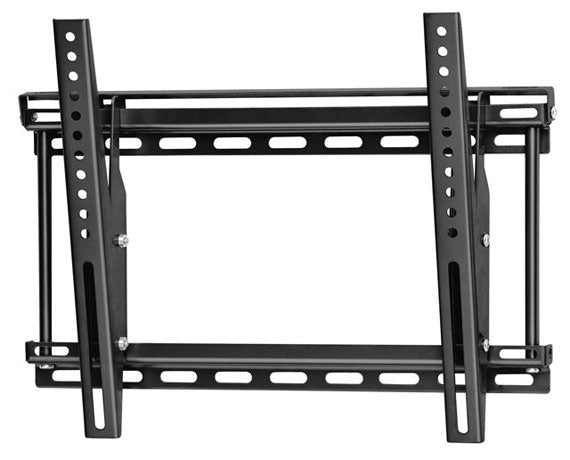

Neo-Flex® Tilting Wall Mount, VHD

R 1,753.00 ZAR
 per
VAT included.
Shipping calculated at checkout.

Product description

logo-notag

Fits most 23"–42" flat panels up to 80 lbs (36.3 kg) and is ideal for those looking for an easy-to-use medium tilt mount.

Benefits
Tilt range up to 20º to reduce glare
Universal rails for greater panel compatibility
Lift n’ Lock™ allows you to easily attach your flat panel to the mount
Tension adjustment for variable tilt
Sliding lateral on-wall adjustment
Open architecture provides easy access to in-wall wiring
Locking bar secures panel to mount
Simple to install and use
Includes complete hardware kit

Tech Specs


































Screen

Screen

23"–42"†















Capacity

Capacity

≤ 80 lbs
36.3 kg















Lift

Lift
















Tilt

Tilt

20°















Pan

Pan
















Rotation

Rotation
















VESA

VESA

MIS-D/E/F*



Part Number: 60-613
Description: Neo-Flex Tilting Wall Mount, VHD, Very Heavy Duty (black)
Includes wall plate, two (2) tilt rails, locking bar, installation and attachment hardware
† Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
* Universal Monitor Attachment: Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 400 mm (max.)
Vertical = 100 mm (min.) to 300 mm (max.)
Profile off the wall = 1.9" (49 mm)
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full compliance with RoHS directive is in progress
Shipping Dimensions: 9.4" x 20.4" x 2.7" (238 x 518 x 68 mm)
Shipping Weight: 10.4 lbs (4.7 kg)
Warranty: Three (3) years
