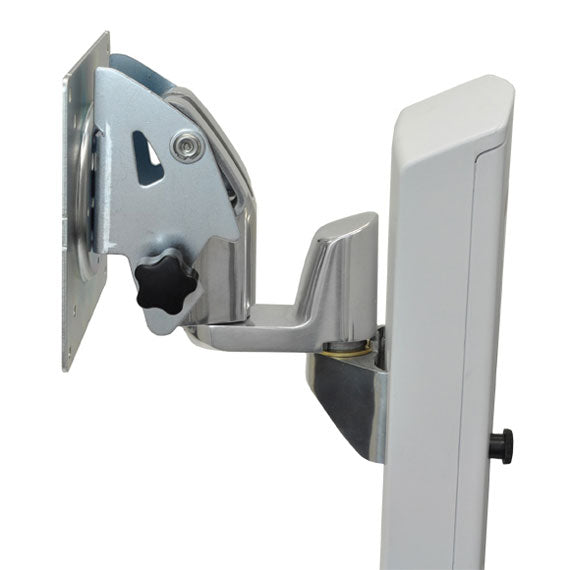

Pan Pivot Kit for SV LCD Cart

Upgrade your StyleView Cart by increasing the display’s side-to-side pan motion to a full 180°. Allows easy screen sharing and better personalized views.

Compatible with most StyleView LCD Carts that include a 5" Lift Pivot and where the part number begins with SV31, SV32, SV41 or SV42.

Benefits
Turn the screen 90° to the left or right to share information with others
Easy to use, simple installation
Durable polished aluminium construction

Tech Specs

Screen * Capacity † Lift * Tilt * Pan 180° Rotation * VESA *

Part Number: 97-650
Description: Pan Pivot Kit for SV LCD Cart (polished aluminum)
Includes pan extension, hardware
* This kit uses the cart’s existing pivot and base. Capabilities of the pivot will be the same as original configuration with the exception of pan motion and weight capacity
Follow the weight capacity limitations to avoid any tip hazard
† Weight Capacity: SV41 = 5–14 lbs (2.3–6.4 kg); SV42 SLA = 5–14 lbs (2.3–6.4 kg); SV42 LiFe = 5–10 lbs (2.3–4.5 kg)
† Weight Capacity with 5" Lift locked out: SV41 ≤ 15 lbs (6.4 kg); SV42 SLA ≤ 15 lbs (6.4 kg); SV42 LiFe ≤ 10 lbs (4.5 kg)
Shipping Dimensions: 4" x 4" x 3.5" (1.6 x 1.6 x 1.4 cm)
Shipping Weight: 1 lbs (.5 kg)
Warranty: Five (5) years
