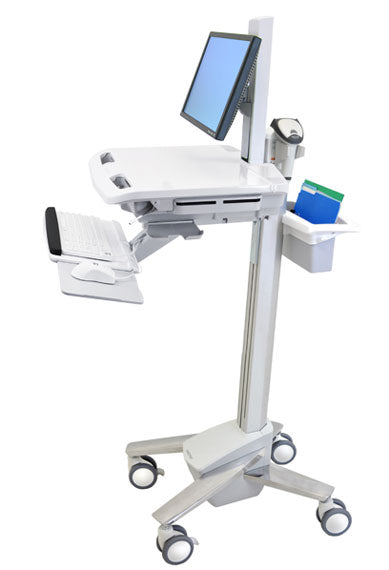

StyleView® Cart with LCD Pivot

R 38,869.00 ZAR
 per
VAT included.
Shipping calculated at checkout.

Please note that product images on our website are for illustrative purposes only. Actual products may vary in appearance and specifications. While we strive to ensure the accuracy of our images, we cannot guarantee that they will always perfectly reflect the actual product.

Product description

logo-notag

This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning, side-to-side keyboard motion and an adjustable back-tilt keyboard tray.

Benefits
Effortlessly maneuver the cart to the point of need—StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment—helps promote caregiver wellness and productivity
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Surfaces are treated with antimicrobial for product protection
Keyboard pans fully side-to-side for closer access while interacting with clients
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment

Tech Specs


































Screen

Screen

≤ 24"















Capacity

Capacity

≤ 35 lbs*
16 kg















Lift

Lift

25"†
63 cm















Tilt

Tilt

25°















Pan

Pan

24°















Rotation

Rotation

90° P/L‡















VESA

VESA

MIS-D



Part Number: SV41-6300-0
Description: StyleView LCD Cart, non-powered, pivot (white, grey and polished aluminum)
Includes LCD pivot, worksurface, CPU lock, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage, four casters (two locking)
* Total maximum load on height-adjustment assembly = 35 lbs (15.9 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg)
Note: Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers—contact Ergotron for details
Note: If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
† LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
‡ Portrait screen orientation may be incompatible with widescreen displays > 19"
True Ergonomics
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
Actual cart weight is just 59 lbs (26.8 kg), making system relocation easy
Safe
Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
Large, smooth worksurface; easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
Front-locking casters
CPU lock provided inside the storage compartment for additional security
Designed to meet guidelines established by the American National Standards Institute for computer use
Service
Covered by Global Service Program—24/7 coverage
All the Details Covered
Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
Button for LED lights is located conveniently on worksurface
Rear basket keeps task-related items where they can be quickly accessed
Universal mounting slot for accessories and equipment
A unique cable management system conceals and organizes cords, making cleaning easy
Ships fully assembled and is easily accessible from container
Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
Four-port USB hub
Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
Compatibility and Dimensions
Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions: 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight: 86 lbs (39.1 kg); actual cart weight = 59 lbs (26.8 kg)
Warranty: Five (5) years
