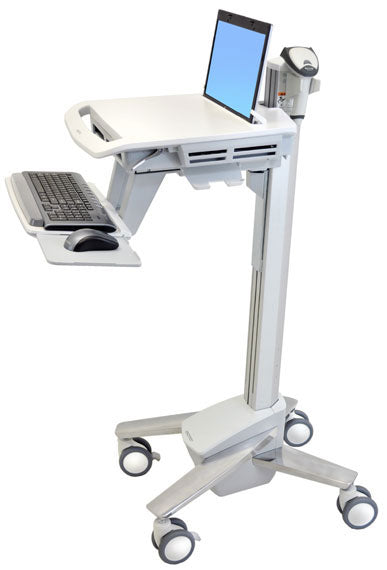

StyleView® Laptop Cart, SV40

Incredibly lightweight! This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.

Benefits
Effortlessly maneuver the cart to the point of need—StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment—helps promote caregiver wellness and productivity
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
Open-architecture design accommodates most laptops—even widescreen—easing future hardware deployments and upgrades
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment

Tech Specs

Screen ≤ 17.3"† Capacity ≤ 18 lbs* 8 kg Lift 20" 51 cm Tilt — Pan — Rotation — VESA —

Part Number: SV40-6100-0
Description: StyleView Laptop Cart, non-powered, SV40 (white, grey and polished aluminum)
Includes worksurface, secure laptop compartment, mouse holder, wrist rest, scanner holder, back-tilt keyboard tray, left/right mouse tray, cable storage, four casters (two locking)
† Maximum Laptop Size: 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
* Weight Capacity: Total maximum load on height-adjustment assembly = 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg)
Laptop and worksurface adjust 20" (51 cm) in tandem
True Ergonomics
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
Patented CF™ lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch
Actual cart weight is just 50 lbs (22.7 kg), making system relocation easy
Safe
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Tested to UL/EN/IEC specifications for enhanced patient safety
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
One-piece worksurface with no seams; easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
Front-locking casters
Designed to meet guidelines established by the American National Standards Institute for computer use
Service
Covered by Global Service Program—24/7 coverage
All the Details Covered
Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
Universal mounting slot for accessories and equipment
A unique cable management system conceals and organizes cords, making cleaning easy
Ships fully assembled and is easily accessible from container
Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
Compatibility and Dimensions
Open-architecture design accommodates most laptops—even widescreen with up to 17.3" diagonal size—easing future hardware deployments and upgrades
Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
Worksurface Dimensions: 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions: 53"D x 34"W x 36"H (135 x 89 x 91 cm)
Shipping Weight: 77 lbs (35 kg); actual cart weight = 50 lbs (22.7 kg)
Warranty: Five (5) years
