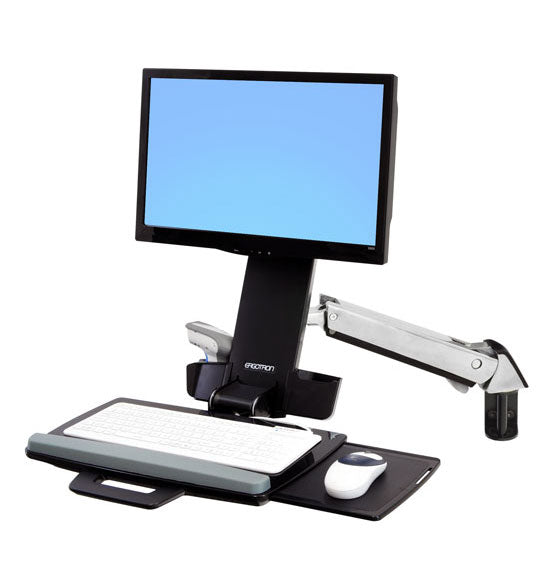

StyleView® Sit-Stand Combo Arm

Durable polished aluminum construction! Holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment.

Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

Benefits
Flexible, open-architecture design is scalable for future computer equipment
Comfortable, ergonomic data entry—work sitting or standing with 20" (51 cm) single-motion lift adjustment
Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
Easy-to-clean features promote superior infection control
Barcode scanner holder provides easy access to hand-held scanner
Extend LCD and keyboard up to 39.75" (101 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30 cm)
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
Maintains the relative position of screen and keyboard throughout full range of motion
Clean, concealed and neat routing of cables through the expansive cable management system

Tech Specs

Screen ≤ 24" Capacity ≤ 29 lbs* 13.2 kg Lift 25"† 64 cm Tilt 30°‡ Pan 360° Rotation 360° P/L VESA MIS-D

Part Number: 45-266-026
Description: StyleView Sit-Stand Combo Arm (polished aluminum)
Includes Combo Arm, wall mount bracket, track mount bracket kit, height-adjustable LCD mount, wrist rest, scanner and mouse holder, integrated keyboard tray with left/right mouse tray, handle, VESA monitor mounting kit, cable ties
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 6–18 lbs (2.7–8.2 kg) or up to 25 lbs (11.4 kg) with tilt and lift lock-out features engaged; keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
‡ Monitor up/down tilt = +25°/-5°
Patented CF™ lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Fold-down keyboard tray to support workflow needs. Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
Back-tilt keyboard tray adjustable from 0° to -10°
Optional Extender (45-261-026) increases range of motion for even greater reach
Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Product Weight: 24.7 lbs (11.2 kg)
Shipping Dimensions: 25.5" x 22.1" x 11.1" (648 x 561 x 282 mm)
Shipping Weight: 31 lbs (14.1 kg)
Warranty: Five (5) years
