- Sku: 45-270-026
- Vendor: TechExpress SA

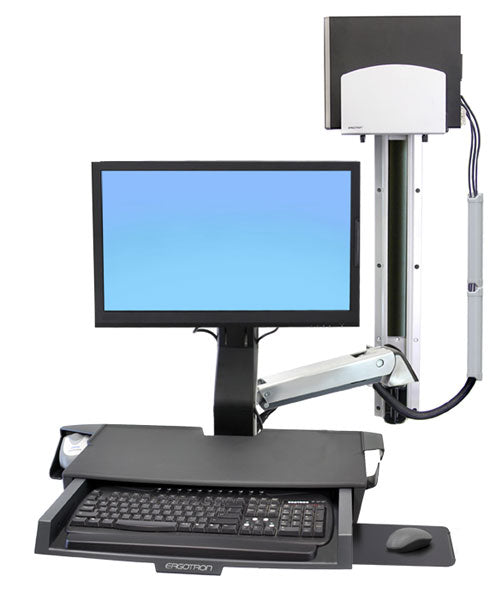

StyleView® Sit-Stand Combo System with Worksurface
Please note that product images on our website are for illustrative purposes only. Actual products may vary in appearance and specifications. While we strive to ensure the accuracy of our images, we cannot guarantee that they will always perfectly reflect the actual product.
With Medium Silver CPU Holder. This complete system provides easy re-positioning of your entire workstation—move your display, keyboard, mouse and barcode scanner in a single motion!
Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver workflow. Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
Benefits
Support workflow needs with sturdy worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Handle-contact surfaces and Wrist Rest are treated with Agion® Antimicrobial for product protection
Flexible, open-architecture design is scalable for future computer equipment
Comfortable, ergonomic data entry—work sitting or standing with 20" (51 cm) single-motion lift adjustment
Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
Easy-to-clean features promote superior infection control
Barcode scanner holder provides easy access to hand-held scanner
Extend LCD and keyboard up to 43" (109 cm) from wall; fold equipment back out of the way when not in use. With worksurface/keyboard in storage position, system depth is as little as 8" (20.3 cm)
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
Maintains the relative position of screen and keyboard throughout full range of motion
Clean, concealed and neat routing of cables through the expansive cable management system
Tech Specs
|
Part Number: 45-270-026
Description: StyleView Sit-Stand Combo System with Worksurface and Medium CPU Holder (polished aluminum)
Includes Combo Arm, 34" Wall Track with (2) black track covers, Medium Silver CPU Holder, CPU spacer, (2) 10" cable channels, CPU and Arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, cable ties
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
* Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18.2 kg)
† Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
‡ Monitor up/down tilt = +25°/-5°
Patented CF™ lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Integrated mouse and barcode scanner holder provide easy access
Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
Back-tilt keyboard tray adjustable from 0° to -10°
CPU Size Range: 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
CPU Holder includes fasteners for locking the holder’s width
Optional Extender (45-261-026) increases range of motion for even greater reach
Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
Product Weight: 41 lbs (19 kg)
Shipping Dimensions: 37.1" x 26.1" x 10" (942 x 662 x 254 mm)
Shipping Weight: 51 lbs (23 kg)
Warranty: Five (5) years
