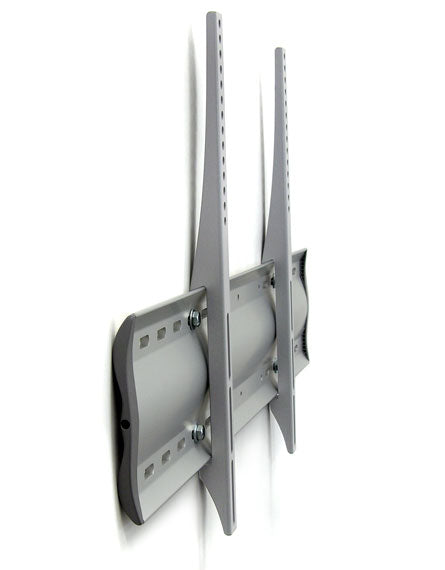

WM Low Profile Wall Mount, XL

he WM’s wall-hugging design hangs your large flat panel display just over an inch from the wall for an extremely slim profile. Yet this TV wall mount costs about half that of competing models. Engineered to install in three easy steps, the WM is sturdy and stable.

This “XL” version provides the extra width to handle larger displays that use mounting-hole patterns up to 800 mm wide.

Benefits
Installs in three simple steps
Extremely slim profile—just over an inch from the wall
Fits most screens greater than 42" up to 175 lbs (79 kg)
Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display
Includes fasteners for mounting to wood studs or concrete

Tech Specs

Screen ≥ 42" Capacity ≤ 175 lbs ≤ 79 kg Lift — Tilt — Pan — Rotation — VESA MIS-D/E/F*

Part Number: 60-602-003 (replacement for 60-578-003)
Description: WM Low Profile Wall Mount, XL (silver)
Includes wall plate, two (2) display brackets, hardware fastner kit
* Universal Display Attachment: Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 800 mm (max.)
Vertical = 100 mm (min.) to 450 mm (max.)
Mounting Options: Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" or 24" centered studs) or concrete walls
Premium Construction: Composed of extruded aluminum and steel
Profile off the wall = 1.25" (32 mm)
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Shipping Dimensions: 39.8"W x 10.4"H x 2.2"D (101 x 26 x 5.5 cm)
Shipping Weight: 12 lbs (5.5 kg)
Warranty: Five (5) years
